Robotic manufacturing

We have modern technologies at our disposal and at our production plant we provide 5-axis CNC machining and cutting of fibreglass and other composite materials. We will take care of the preparation of technical documents and 3D visualization.

Thanks to the head with interchangeable tools we are able to mill non-metallic surfaces, such as fibreglass with a thickness of a few millimetres, without the slightest trace of damage. The robust structure of the CNC machine with a flexible cutting head allows us to also machine large parts made from sandwich panels.

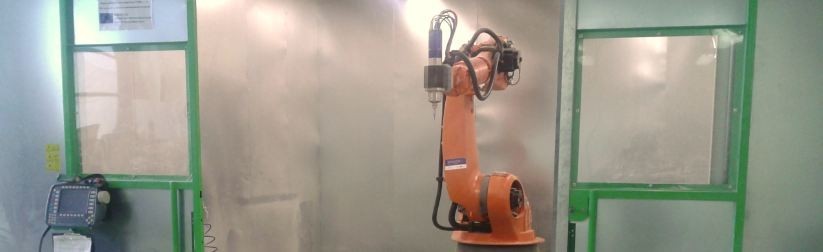

Robot: KUKA KR100L80 - 2HA

Technical parameters of the machine:

  • workpiece size for a single setup 2500 x 2500 x 1000 mm
  • suctioning
  • automatic tool exchange
  • spindle motor 11 kW (30 000 rev./min)
  • maximum table load 1000 kg
Robot: KUKA KR100L80 - 2HA Robot: KUKA KR100L80 - 2HA Robot: KUKA KR100L80 - 2HA

Cutting plotter ZÜND M-1600

Technical parameters of the machine:

  • working surface - 1300 x 1620 mm
  • maximum width of passing material - 1600 mm
  • maximum height of passing material - 20 mm
  • accuracy ± 0,02 mm
  • control – movement along 4 axes (X,Y,T,Z) for processing vector data
  • the plotter system serves for cutting and marking materials that are mounted to the table (in particular prepregs, foam, thermoplastics, woven fabrics)
Cutting plotter ZÜND M-1600 Cutting plotter ZÜND M-1600 Cutting plotter ZÜND M-1600

We work in the programs: SolidWorks, Tebis CAD/CAM, Grafitroniks, AutoCAD

Are you interested in CNC machining and cutting of composite materials? Contact us with more detailed requirements and we will immediately send you a price offer free of charge.

Example of profile machining technology shaping
